PVC Pergola Roof
折叠顶篷(PVC 凉亭顶)
A motorised retractable roof that turns an open courtyard into an all-weather room — up to 11 m of travel.

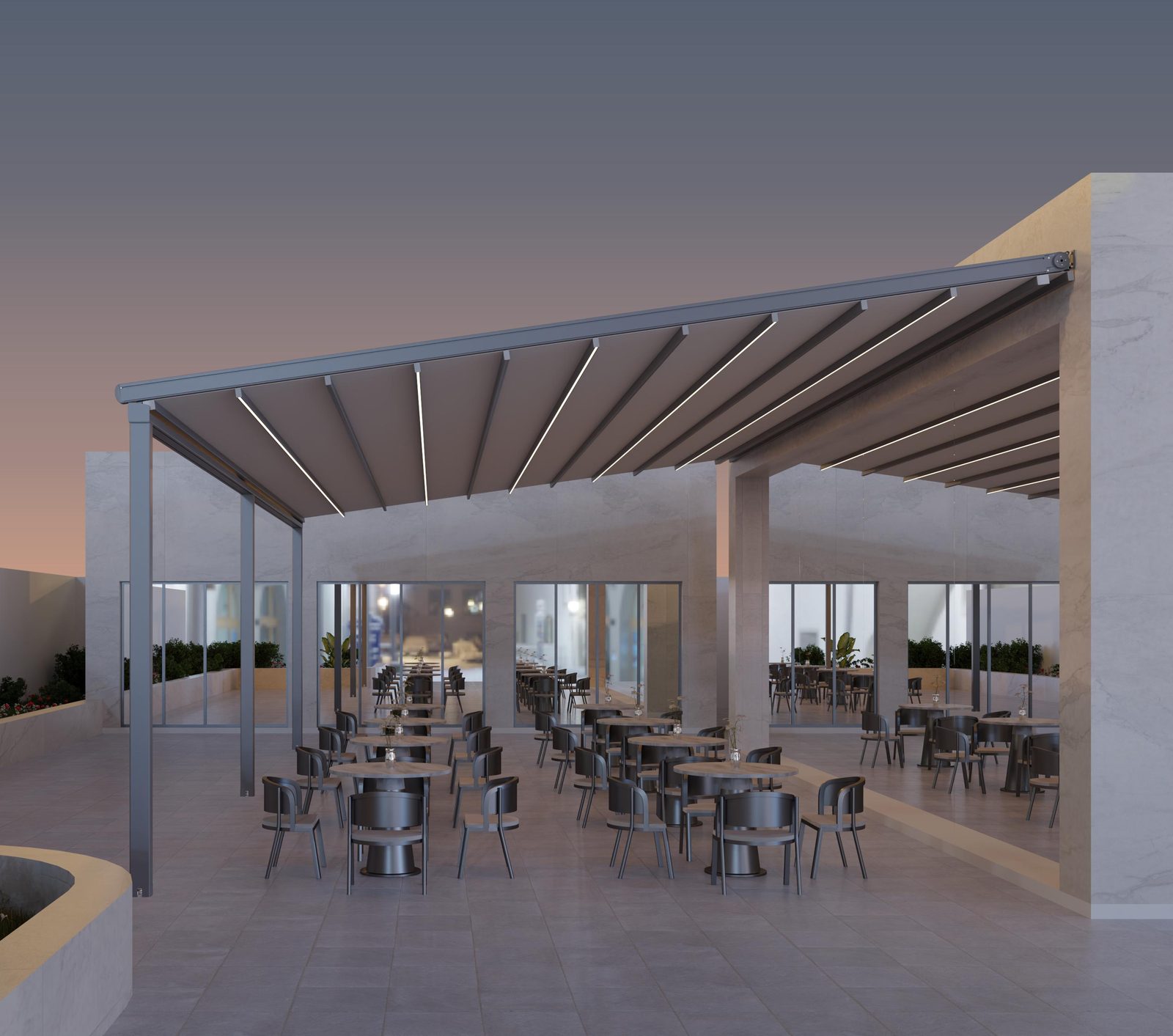

The folding PVC pergola roof turns an open courtyard, restaurant terrace or hotel poolside into a room that can be closed and reopened at will. It is a motorised retractable roof that travels up to 11 m on the standard 5 x 7 m set, built on a 6063 aluminium frame and covered in 850 g/m2 diamond-patterned flame-retardant PVC with a polyester reinforcement. It is the answer where buyers need a large waterproof span without a permanent structural roof.
Choosing the right specification
This line is chosen for span and weather rather than for fine aesthetics: it is fully waterproof and rated to wind speeds up to 62 km/h (Level 7), and the same unit can be mounted seven different ways. Tell us whether you are fixing to a courtyard wall, an existing steel frame, a freestanding column base or a flat roof, and we will quote the matching mounting arrangement so your installers are not improvising on site.
Models
Key specifications
- Standard single set 5 × 7 m; custom extension up to a maximum of 11 m
- 850 g/m² heavy-duty diamond-patterned flame-retardant PVC + polyester fabric
- Wind resistance up to 62 km/h (Level 7); fully waterproof design
- Motor driven with wireless remote; 6063 aluminium alloy, high-density powder coating
- Waterproof silicone LED strip at 3000 K with 450–500 mm horizontal bar spacing
- Fabric: radial tensile strength 3312 N/5 cm, latitudinal 2898 N/5 cm; UV resistance level 4; GB/T5455-2014 fire rating; 10-year warranty
- Fabric colours white, yellow, grey; frame colours dark grey, white, coffee, plus custom

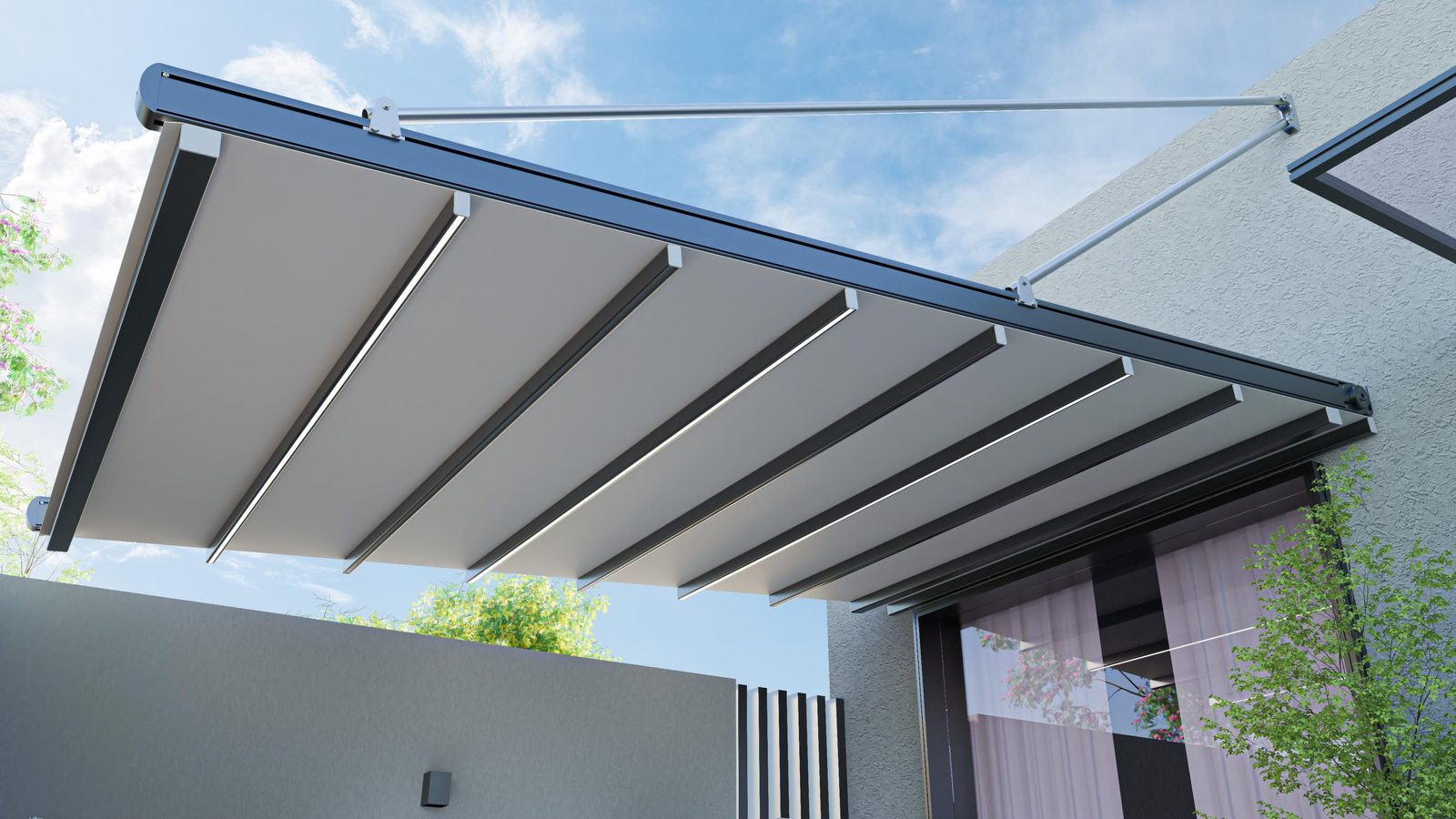

- Mounting types: column support, diagonal tie rod, A-frame column, wall clamp, wall support, steel structure support, flat roof type
What we supply for this line
- Aluminium frame profiles with high-density powder coating
- 850 g/m2 flame-retardant PVC/polyester roof sheet
- Motor, wireless remote and waterproof silicone LED strip
- Selected mounting arrangement: column support, diagonal tie rod, A-frame column, wall clamp, wall support, steel structure support or flat roof type
- Assembly drawings and installation support
- Export packing; private-label cartons and manuals for OEM orders
Ordering & trade terms
The questions importers and project contractors ask first. Full details are on the FAQ page; the terms below apply to this product line unless your project is quoted otherwise.
PVC Pergola Roof - frequently asked questions
What is the maximum span of a folding PVC pergola roof?
A standard single set is 5 x 7 m and can be extended to a maximum travel of 11 m. Wider areas are covered by combining sets rather than by stretching a single unit.
How does it cope with wind and rain?
The roof is fully waterproof and rated to wind speeds up to 62 km/h (Level 7). The fabric is an 850 g/m2 diamond-patterned PVC with polyester reinforcement, with a radial tensile strength of 3312 N/5 cm and a latitudinal strength of 2898 N/5 cm.
What mounting options do you offer?
Seven arrangements are produced: column support, diagonal tie rod, A-frame column, wall clamp, wall support, steel structure support and flat roof type. This lets the same roof be fitted to a courtyard wall, an existing steel structure or a freestanding base without bespoke fabrication.
What is the fire rating and warranty?
The fabric is tested to GB/T5455-2014 for flame retardancy with UV resistance level 4, and carries a 10-year warranty. Fabric colours are white, yellow and grey; frame colours are dark grey, white and coffee, plus custom.
